KFI PRODUCTS A2500-R2 ATV Winch - 2500 lb - Steel Cable A2500-R2
KFI PRODUCTS A2500-R2 ATV Winch - 2500 lb - Steel Cable A2500-R2 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Most items ship for free to the continental United States
KFI PRODUCTS A2500-R2 ATV Winch - 2500 lb - Steel Cable A2500-R2
Description
Description

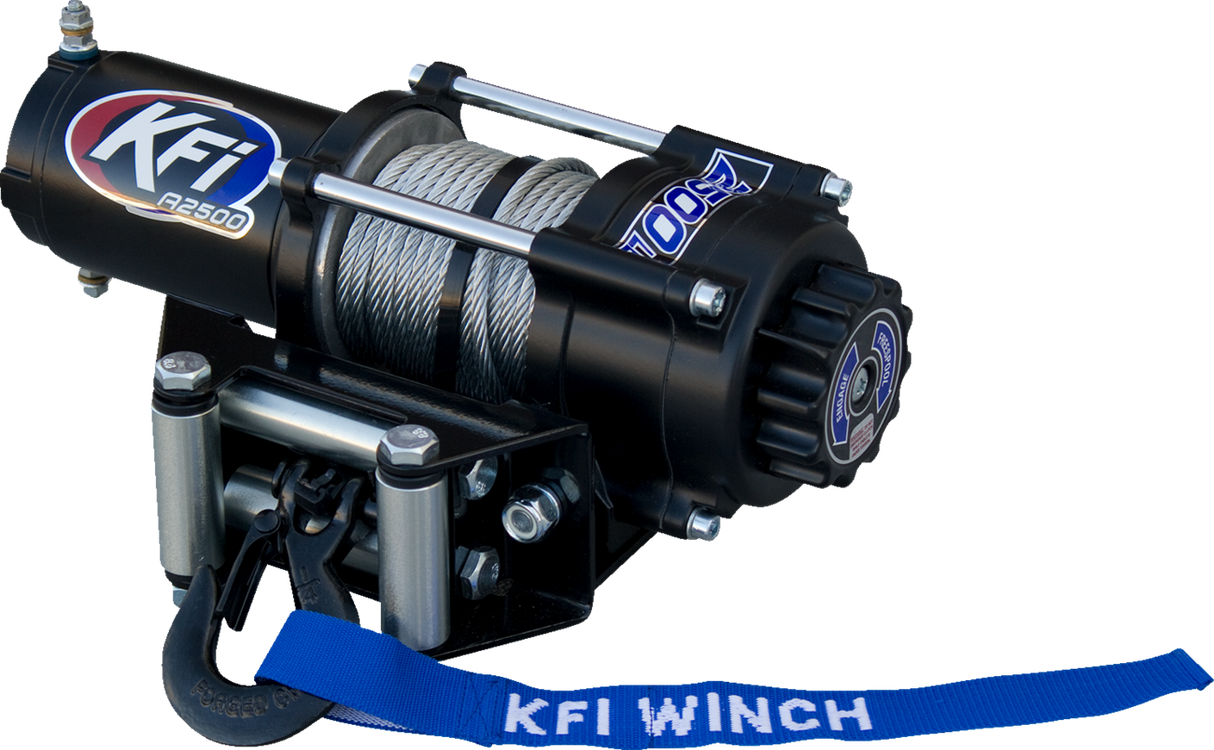

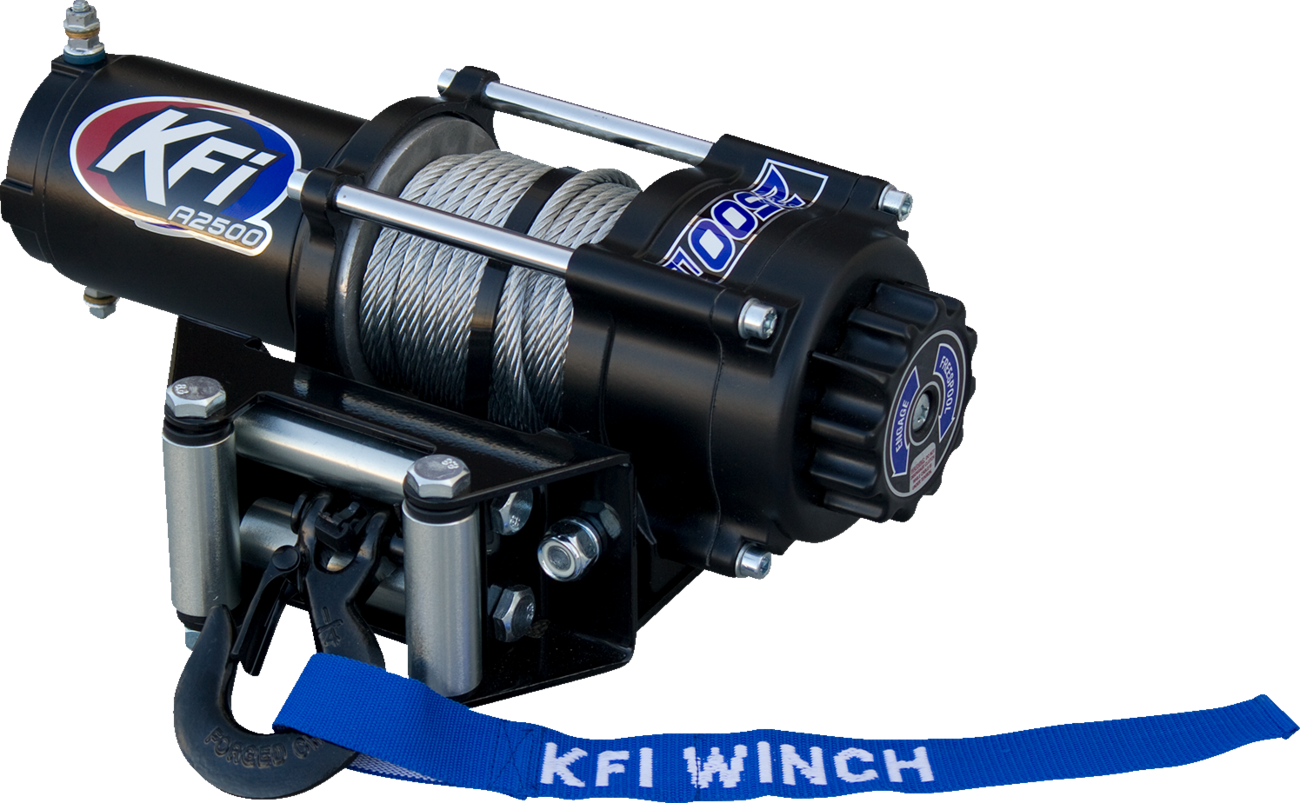

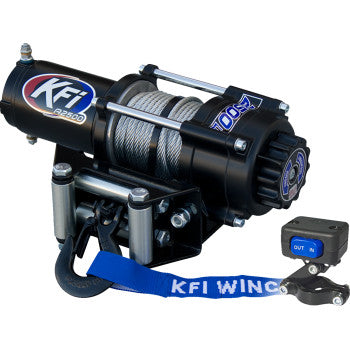

A2500-R2 ATV Winch - 2500 lb - Steel Cable
Compact ATV Series winches feature quality cast aluminum and durable steel components, Water resistant seals to keep the elements out, Standard 4-hole mounting design and a heavy duty, all metal turn clutch, All of the KFI winches are backed by a 1-year Limited Warranty and come with everything you need other than an ATV model specific winch mount, Everything is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount, Mini-Rocker Switch included to take control of your winch - comes with an adjustable bracket to mount on to your ATV's handlebars, allowing control of the winch without having to let go of the handlebars, The included Heavy Duty Electric Contactor protects your ATV's electrical system and switches the power distribution of your winch that is controlled from your switches
| A2500-R2 Specifications | |
| Model | A2500-R2 ATV Series |
| Rated Line Pull | 2500 lbs. |
| Motor | 12V DC, 1.2 hp Permanent Magnet |
| Gear Ratio | 171:1 |
| Gear/Transmission | All-metal Planetary Gear Drive |
| Brake | Dynamic and Mechanical |
| Clutch (free spooling) | All Metal Cam Activated Freespool |
| Drum Size | 1.5" (D) x 3.15" (L) |
| Cable | 3/16" (D) x 45.9' (L) |
| Fairlead | Multi-directional Roller |
| Control | Deluxe Handlebar-Mounted Mini-Rocker Control Switch |
| Winch Dimensions | 12.67" L x 4.06" D x 4.29" H |
| Mount Plate | Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV) |
| Mounting Bolt Pattern | 3.00" x 4.875" (4-Hole) |
| Recommended Battery | 12 Amp/hour minimum |
| Warranty | Limited 1 Year |
| Winch Weight | 25.7 lbs. (complete kit) |
| Certification | CE Certified |
