TECMATE Optimate 4 - Quad TM631

Optimate 4 - Quad
OptiMate 4 Quad Program is the ultimate battery charger for the high technology 12 V / 12.8 V battery

Quad program – select program 1 or 3 to charge battery direct or through a live (hot) 12V socket*, or program 2 or 4 to charge through BMW CAN-bus controlled 12V socket*.
* requires optional cable accessory to connect to socket.

Fully automatic multi-step program brings the battery safely to full charge – Select by battery type & charge requirement and OptiMate 4 Quad Program does the rest, no supervision required!

IDEAL FOR: AGM, GEL & STD 12V batteries from 4 – 60Ah & Lithium (LiFePO4) 12.8/13.2V batteries from 2 – 15Ah

CHARGING AMPS: 1.25A (constant current)

CHARGING VOLTS: nominal: 12V & 12.8V range: 0.5V – 14.4V

OPERATION:  Selectable, 4 charge programs.

12V: 1) Smart desulphation: 0.5V - 14.4V 2) BMW CAN-bus compatible: 5V - 14.4V
12.8V: 3) Low Volt Recovery: 0.5V - 14.4V 4) BMW CAN-bus compatible: 8.8V - 14.4V

FEATURES: OptiMate 4 Quad Program tests before & after charging and can recover a ‘dead-flat’ lead-acid & lithium (LiFePO4) battery from as low as 0.5 Volts.

USE: Indoor / Outdoor  (lowest temperature: -40°F / -40°C).

INPUT: Global (100-240V 50-60Hz), high efficiency (CEC listed).

STYLE: Weatherproof case with wall mounts, with 6ft / 180cm AC supply lead and 6ft / 180cm charge lead ending in SAE connector.

SAVE : Low Volt Start of 0.5V + 2-step* desulphation recovery (*1-step low volt pulse save during CAN-bus mode).

SAFE: No risk of overcharging. Totally safe for vehicle electronics. Sparks suppressed. Safe for long-term battery maintenance. Automatic shut-down if short-circuited or battery disconnected.

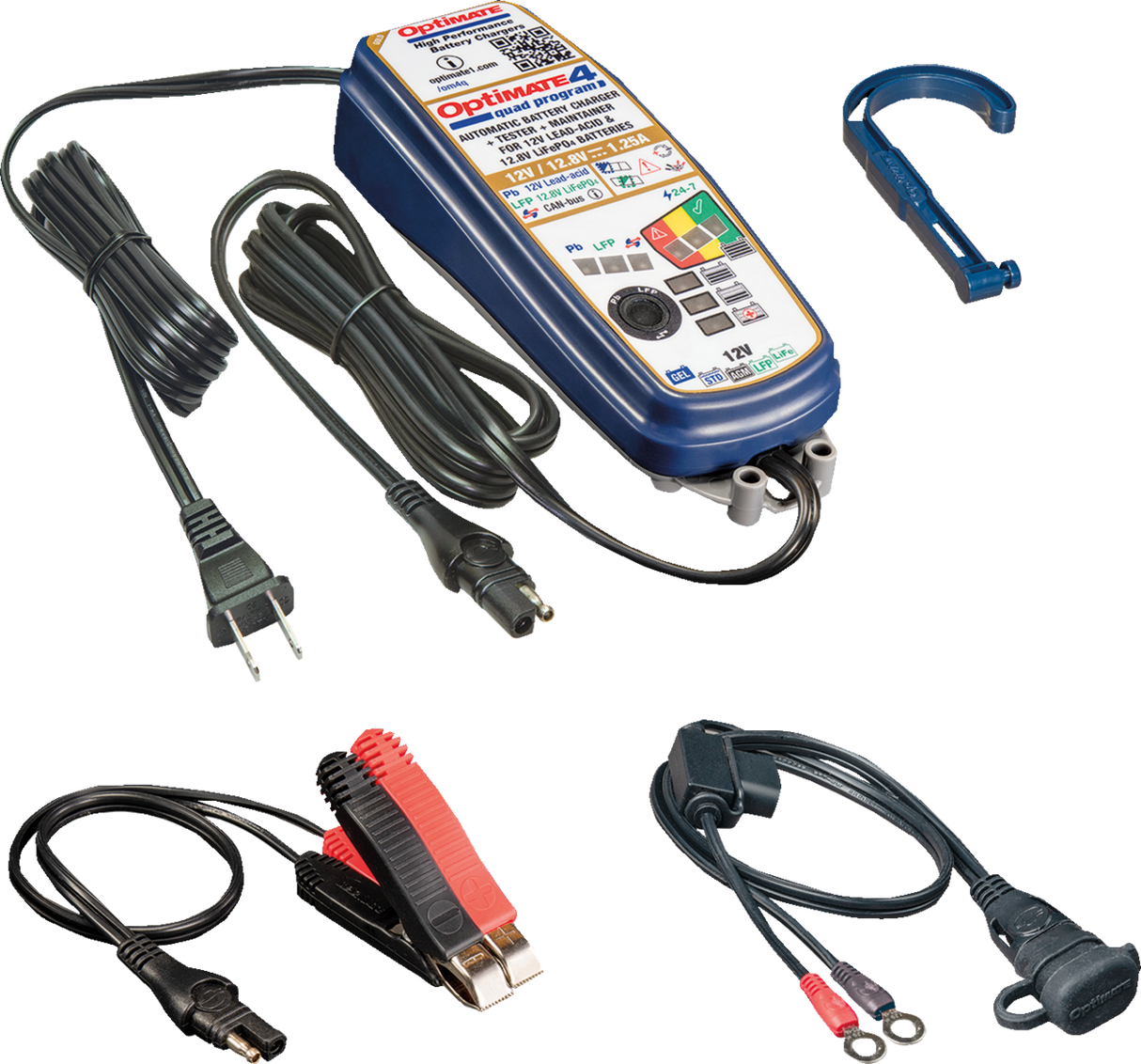

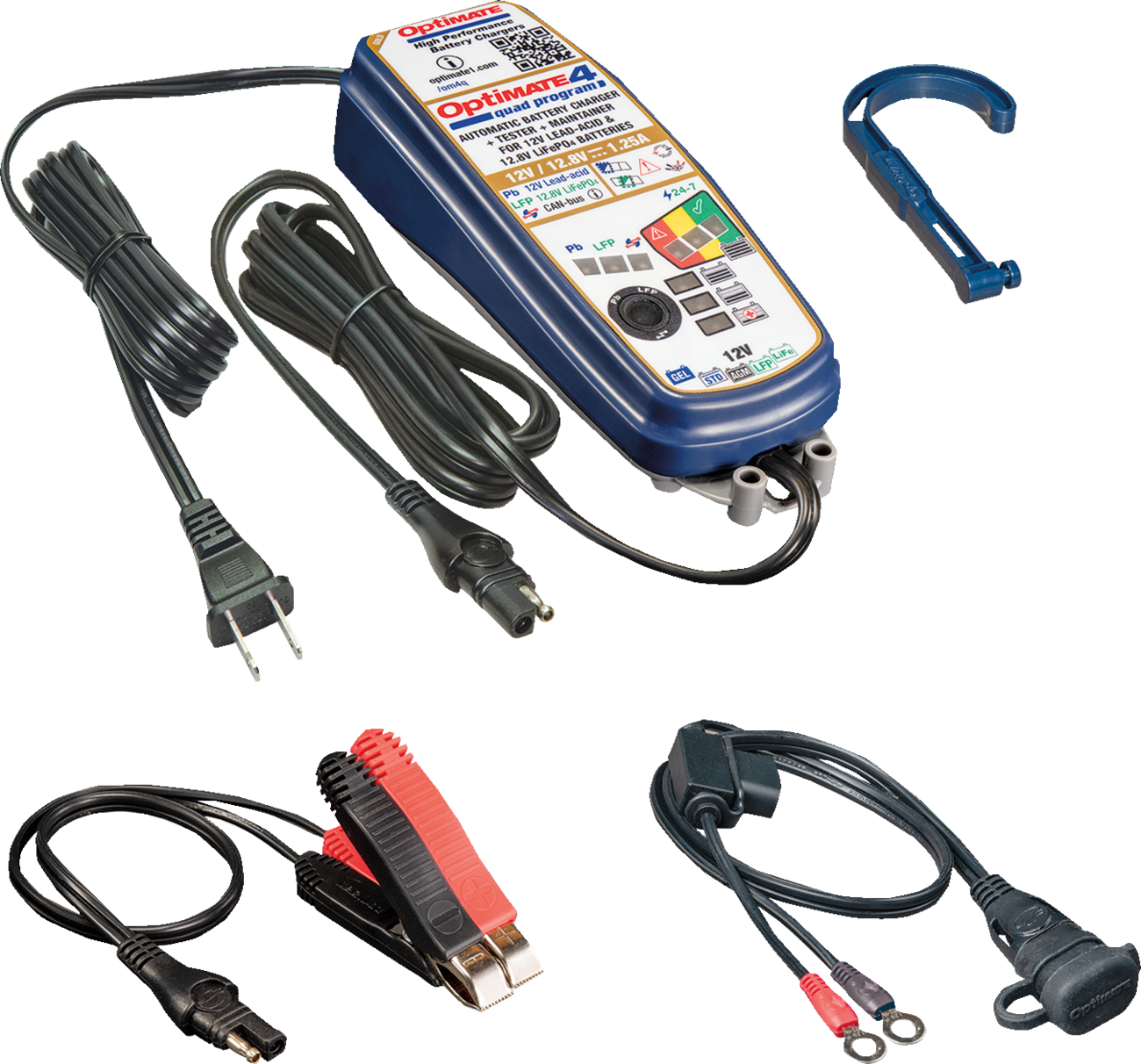

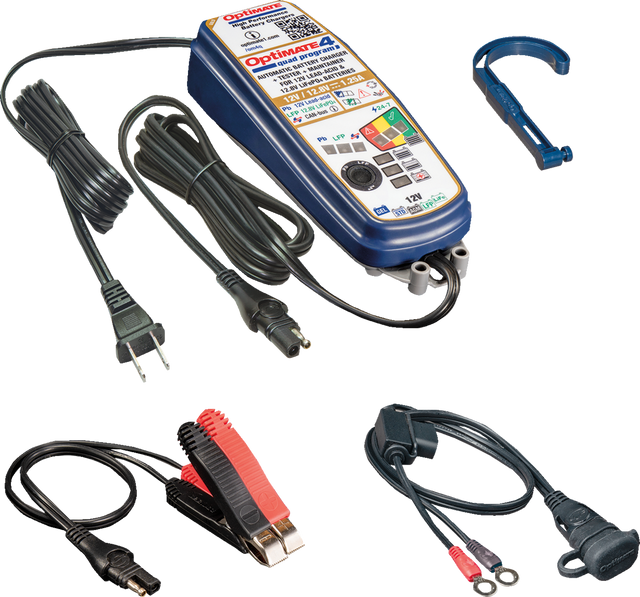

INCLUDED: weatherproof battery lead, battery clip set & hanging hook.
